TMA 2 ~ Design a Speech Recognition Program for a Microwave Oven

We were provided with software that enabled us to write simulated speech recognition programs. We were asked to write a program for use within a microwave oven. I loved this module but I know plenty of people that hated it. The speech recognition could, at times, be extremely unstable but on the whole I thought it was great fun, you could even teach Baldi (the 'person' in the simulator) to say rude words ;o)

------------------------------------------------------------------------------

Flow Chart for microwave application.

We were required to draw a Flowchart to reflect our design, this is a small extract.

Figure 1: An extract from the beginning of my Flowchart for the Microwave Oven Simulation

We needed to break our application down into modules so that we could then design, test and build it piecemeal. I chose to use the following breakdown.

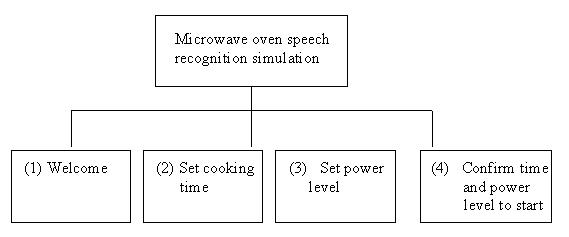

Figure 2: Hierarchical Task Decomposition(HTD) diagram for a Microwave Oven

After using the software provided we needed to take a screen shot of our finished design and submit it as part of our TMA. Again here is a small extract of mine.

Figure 3: Extract from Screen Dump showing Microwave Oven Speech Recognition Program Simulation

Finally we had to write a short report between 500-800 words reviewing the suitability, strength/weaknesses of our speech interface and strength/weaknesses of the process we went through in designing the interface.
